AQS for AVANCE NEO

Features of the AVANCE NEO acquisition system (AV4 AQS Chassis):

  • Unified low power NMR electronics for liquids, solids and (micro-)imaging.
  • Prepared for up to 8 NMR channels in one chassis (low power RF electronics).
  • Each channel incorporates a full and independent pulse-program-sequencer, receiver and transmitter.
  • Only one frequency version up to 1200 MHz (system frequency).
  • Expandable up to 24 channels (additional chassis may be needed).
  • 12.5 ns timing resolution and synchronization of each channel.
  • Software controlled mains cycling (power up and down).

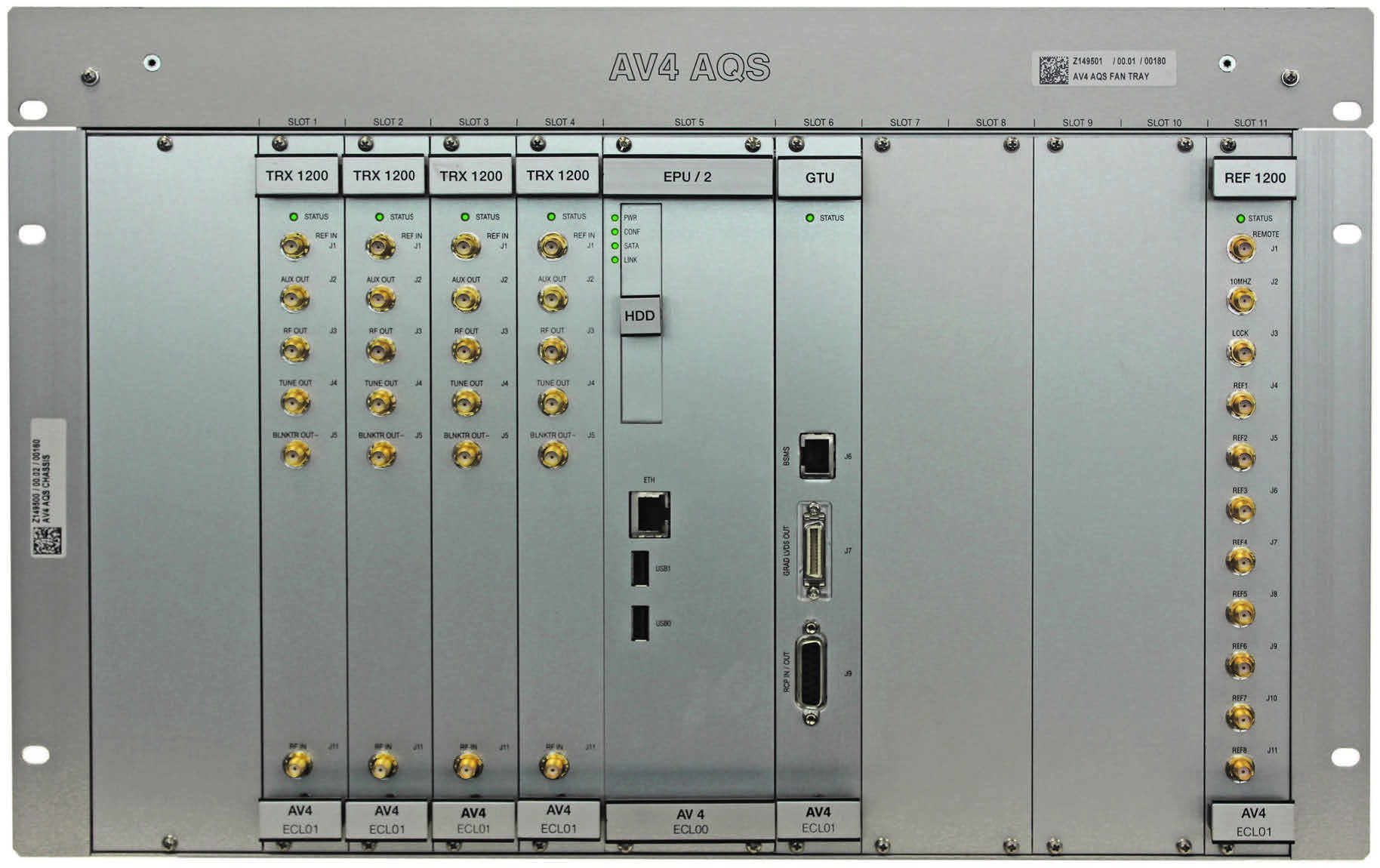

Typical AV4 AQS Chassis Configuration for 4-Channel AVANCE NEO
